Altelix 17x14x7 IP66 NEMA 4X Outdoor Weatherproof Emergency Phone Call Box and Service Phone Box

The Altelix TBP17 Series Weatherproof Phone Enclosure is ideal for deploying emergency or service telephones in outdoor locations and harsh environments. The deeper size can accommodate phones up to 5.5 inches in depth and up to 9 inches wide.

This durable dustproof and waterproof telephone enclosure is ideal for installing emergency telephones in schools, on pool decks, golf courses, loading docks, public buildings and commercial properties.

This durable NEMA 4X enclosure is molded out of UV resistant PC+ABS, a high tech blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures. The door is gasketed for use in dusty or wet areas and features dual stainless steel latches.

Inside features an aluminum mounting plate with a standard RJ11 telephone wall mount jack. An aluminum wire cover cable grommet are provided on the bottom of the enclosure for the telephone wire.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

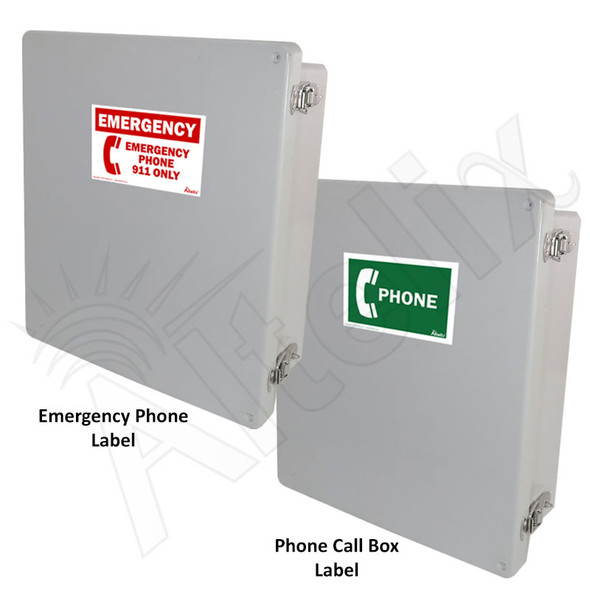

Available with Emergency Phone Label or Service Phone Label
The TBP17 is available with either a red and white Emergency Phone label or a green and white Service Phone label. These weatherproof UV resistant labels are pre-installed on the door.

Customization
Customization is available to meet your specific requirements. Please Contact Us for more information.

Technical Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Outer Dimensions	17.1 x 13.6 x 7.3 Inches (435 x 347 x 184 mm)
Max. Inner Dimensions for Phone*	14 x 9 x 6.2 inches (355 x 228 x 157 mm)
Mounting Plate Material	0.08 In. (2.0 mm) Aluminum
Weight	5.1 lbs. (2.3 kg)
Ratings	Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

*Interior dimensions represent maximum space available for phone.

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
