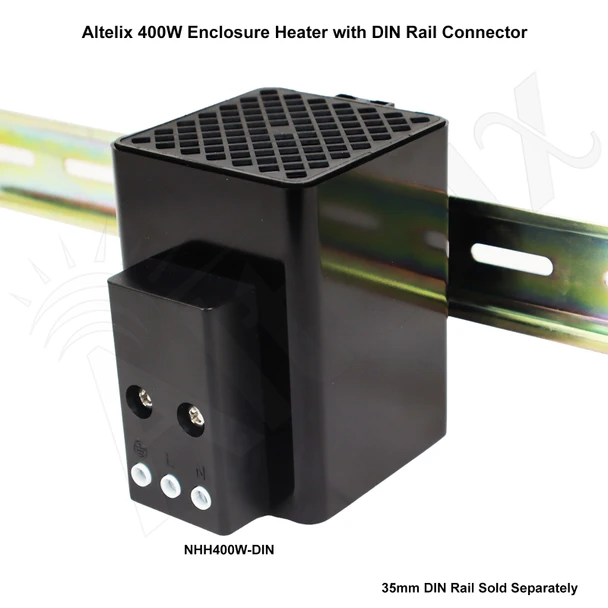

Altelix DIN Rail Mountable 400W Enclosure Heater
The Altelix 400W Enclosure Heater features an integral fan which provides increased airflow and heat distribution. This compact DIN rail mountable heater requires minimal space inside the equipment cabinet.
Industrial Touch-Safe Design
The industrial touch-safe design of this heater is designed to protect against serious burn injuries and prevent damage to surrounding sensitive equipment, although the heater does get hot to the touch.
DIN Rail Mountable
The heater features an integral DIN rail clip, allowing it to be quickly attached to a standard 35mm Top Hat DIN Rail. See the Accessories section for available DIN Rail kits.
Technical Specifications
| Model Number | NHH400W-DIN |
| Heater Power | 400W |
| Operating Voltage | 120VAC |
| Heating Element | PTC |
| Heater Body | Anodized Aluminum with Industrial Touch-Safe Construction |
| Fan Size | 60mm x 60mm |
| Fan Air Volume | 40 m³/h |
| Operating Temperature | -40°C to 70°C |
| Ingress Protection | IP20 |
| Mounting | 35mm DIN Rail |
| Mounting Position | Vertical |
| Dimensions (H x W x D) | 3.5 x 2.5 x 3.5 in. (90 x 64 x 90 mm) |
| Weight | 0.75 lbs. (0.34 kg) |
| Industry Certifications | CE, RoHS |
Downloads
Same Day Shipping - For 35mm DIN Rail Kits for Altelix enclosures, click the ACCESSORIES and ADD-ONS button.
