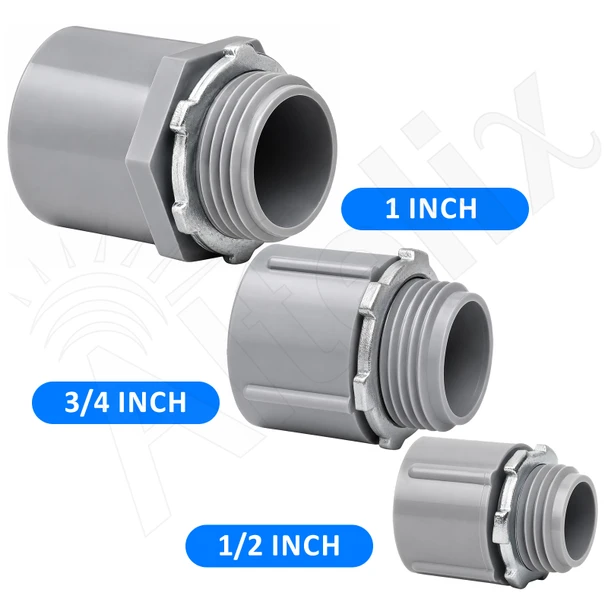

The Altelix PVC Conduit Male Terminal Adapter provides a transition between rigid PVC conduit and NPT threaded connections. The included steel locknut also allows installation through unthreaded openings, making it suitable for enclosure and electrical box installations. For use with RIGID PVC non-metallic conduit. Male threads on one end and a slip-fit connection for glued PVC conduit on the other.
Technical Specifications
| Model Number | HGNX50 | HGNX75 | HGN100 |
| Thread Size | 1/2" NPT | 3/4" NPT | 1" NPT |
| Conduit Connection | Slip Fit | Slip Fit | Slip Fit |
| Clearance Hole Size | 7/8" (22.2 mm) Dia. | 1-1/8" (28.6 mm) Dia. | 1-3/8" (34.9 mm) Dia. |
| Conduit Compatibility | Schedule 40 & 80 | Schedule 40 & 80 | Schedule 40 & 80 |
| Overall Dimensions (L x Dia.) | 1.18" x 1.02" (30 x 26 mm) | 1.38" x 1.22" (35 x 31 mm) | 2.09" x 1.65" (53 x 42 mm) |
| Material | PVC | PVC | PVC |
| Locknut Material | Steel | Steel | Steel |
| Color | Gray | Gray | Gray |
| Industry Standards | NEMA TC-3 | NEMA TC-3 | NEMA TC-3 |
| Certifications | CSA, UL Listed | CSA, UL Listed | CSA, UL Listed |
