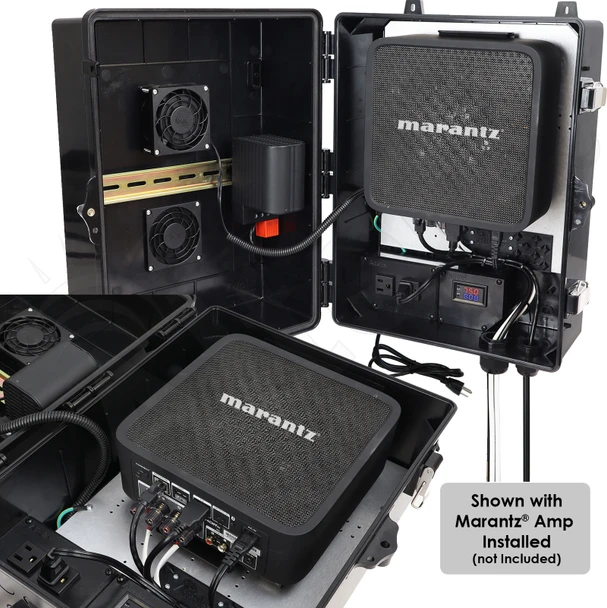

Install Your Marantz® Model M1 Amplifier Securely in Unattended Areas
Available in Gray or Black, this enclosure is molded from weatherproof, UV-resistant PC+ABS for long-term protection against the elements, corrosion and UV exposure. The door features dual stainless steel quick-release latches, along with a stainless steel security screw and padlock provision for enhanced security.
Securely Mount Your Marantz® Model M1
The NP17-MAR1 features a mounting system designed specifically for the Marantz® Model M1. Simply attach the included locking cam to the bottom of the amplifier, then slide the Marantz® Model M1 into the mounting bracket until it locks securely into place. A release tab allows the amplifier to be easily removed when needed. A self-adhesive mirror is included and can be attached to the inside of the enclosure to provide visibility to controls and indicator lights on the installed equipment.
Plug and Play Installation
Designed for easy installation, the enclosure includes internal 120VAC power and a pre-wired 5-foot power cord, eliminating the need for electrical wiring. An included 1-foot C7 power cord provides an ideal cable length for connecting the Marantz® Model M1 to the internal power outlet while helping maintain a clean, organized installation. A multi-port cable gland and dedicated Ethernet cable gland provide weather-resistant pass-throughs for speaker, network and other equipment cables.
Integrated 120VAC Power and Surge Protection
The enclosure provides internal 120VAC power for the Marantz® Model M1 and includes integrated surge and lightning protection to help protect installed equipment from electrical surges and lightning-related events. The cooling fan and optional heater are pre-wired internally, leaving the AC power outlet available for the Marantz® Model M1.
Digital Thermostat-Controlled Cooling Fan
A programmable digital thermostat-controlled cooling fan helps maintain proper internal temperatures. The thermostat allows user-programmable temperature set points for automatic fan operation and features a color digital display with selectable Fahrenheit or Celsius temperature readings. The fan is pre-wired internally and does not require use of the AC power outlet. Rain shrouds and screened vents provide ventilation while helping prevent rain and debris from entering the enclosure.
Optional 50W Thermostat-Controlled Heater
For cold-temperature environments, the enclosure is available with an optional 50W thermostat-controlled heater in addition to the cooling fan. The heater automatically operates based on its preset temperature range and is pre-wired internally, leaving the AC power outlet available for the Marantz® Model M1.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Enclosure Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Marantz® is a trademark or registered trademarks of Masimo.
Technical Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |
| Available Colors | Gray, Black |
| Voltage | 120VAC |
| Max Load | 10A @ 120VAC |
| Cooling Fan Turn-On Temperature | 100°F (38°C) ±6°F |
| Cooling Fan Turn-Off Temperature | 79°F (26°C) ±9°F |
| Optional Cooling Fan with Digital Controller Operational Temperature Range | 14°F (-10°C) to 120°F (60°C) |
| Optional Heater Turn-On Temperature | 41°F (5°C) ±9°F |
| Optional Heater Turn-Off Temperature | 59°F (15°C) ±9°F |
| Optional Heater Power | 50 Watts |
| Outer Dimensions (Height x Width x Depth) |
17.1 x 13.6 x 10.5 Inches (435 x 347 x 266 mm) |
| Inner Dimensions (Height x Width x Depth) |
11.8 x 9 x 7.3 Inches (299 x 228 x 185 mm) |
| Weight | 8.1 lbs. (3.7 kg) |
| Power Cord Length | 5 Feet (1.5m) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Industry Certifications | CE |
| Knockout Sizes (Diameter) | (4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
| Compatible Marantz® Models | Marantz® Model M1 |
|
NEMA Ratings and IP Equivalency Chart |
Downloads
Data Sheet
Installation Guide
Enclosure Drawing
Programmable Temperature Controller Guide
Surge Protector Data Sheet
