Protect Your Amazon eero® Pro 6 and Pro 6E WiFi Mesh Router
The Altelix NP14VA1C-EER2 is a vented weatherproof enclosure designed to provide added security, vandalism and protection from harsh environments, while allowing ventilation for the Amazon eero® Pro 6 and Pro 6E WiFi mesh router. It features two 3" inch air vents with rain shields and screens.
Install Your Amazon eero® Pro 6 / Pro 6E Securely
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Amazon eero® Pro 6 / Pro 6E Mesh Router Mount

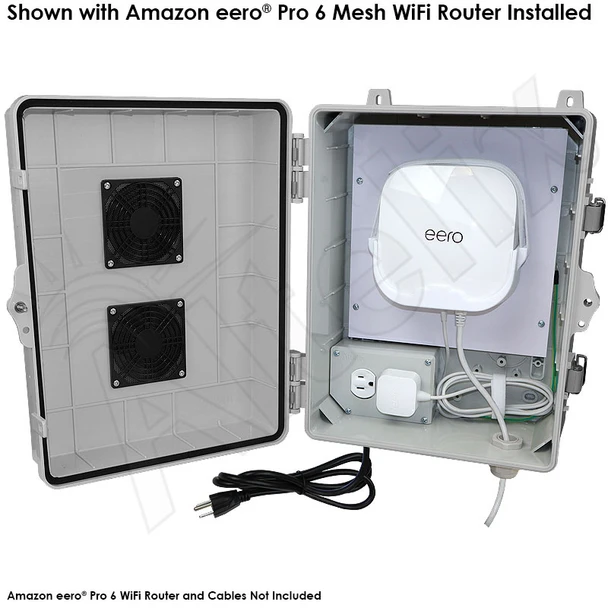

The NP14VA1C-EER2 features a mounting cradle specifically designed for the Amazon eero® Pro 6 and Pro 6E Mesh WiFi Router. Installation is easy, simply slide the eero® Pro 6 into the mounting cradle. For extra security and installations subject to vibrations, an optional hook and loop strap is provided to secure the router within the mounting cradle. The mounting cradle is designed so that it will not interfere with any of the ports on the router such as power and Ethernet.
Plug and Play Setup
The NP14VA1C-EER2 enclosure provides easy plug-n-play installation. Once the router is securely mounted inside the enclosure, connect its power supply to the internal 120VAC power outlet. A cable gland and cable grommets on the enclosure allow cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into a power outlet and you are up and running.
RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.
Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Additional Enclosures for Amazon eero® Wireless Equipment
In addition to this enclosure, Altelix has enclosures for a wide range of Amazon eero® wireless access points and extenders. Click Here to view all available models.
eero® is a trademark or registered trademark of Amazon Technologies, Inc.
Technical Specifications
| Material | Polycarbonate + ABS |
| Available Colors | Gray, Black, Light Ivory, OD Green |
| Voltage | 120VAC |
| Max Load | 10A @ 120VAC |
| Outer Dimensions (Height x Width x Depth) |
13.4 x 11.5 x 6.3 Inches (340 x 293 x 160 mm) |
| Inner Dimensions* (Height x Width x Depth) |
9.5 x 8.0 x 3.8 Inches (241 x 203 x 98 mm) |
| Mounting Plate Material | 0.25 in. (6.4mm) PVC |
| Weight | 4.1 lbs. (1.8 kg) |
| Power Cord Length | 5 Feet (1.5m) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Compatible eero® Model | Amazon eero® Pro 6 Mesh WiFi Router (Model K010011) Amazon eero® Pro 6E Mesh WiFi Router (Model S010011) |
| *Interior dimensions represent maximum space available for equipment. |
 |
NEMA Ratings and IP Equivalency Chart |
